Continuous Integration (CI)

Note

At the moment, there is no triggering mechanism set up between different GitHub repositories. The CI is triggered by Push events, Pull Requests, CRON jobs, or manual dispatches (see Structure).

Status

Structure

The continuous integration in this repository is based on commands pull and build provided by the Python utils (see pyHDLC Reference); so, contributors can execute exactly the same commands locally, for debugging and development. However, there are several layers of complexity around those commands, in order to precisely decide which images to build in each workflow/job execution.

Fig. 12 Structure of the Continuous Integration (CI) in this repository.

As shown in Fig. 12, the following wrappers are used:

Tip

• Since most of the complexity of the orchestration is defined in the YAML configuration files used by pyHDLC, reading YAML Configuration Files is strongly recommended. Data from the configuration files is used in the reusable-dispatchable build-test-release workflow and in the build step of the composite action (see Fig. 12).

• In pyTooling/Actions: Context, details about Action and Workflow kinds supported in GitHub Actions are explained. See also Workflow syntax for GitHub Actions.

• scheduler is a Dispatchable Workflow which reacts to Push events, Pull Requests, scheduled (CRON) runs and manual dispatches. It is the entry point of the CI: it decides which tasks to run, and launches the watch run which supervises them.

  • dag.setup.sh installs the dependencies of the scheduler script (networkx and pygraphviz).

  • dispatch.py parses the DAG of tasks defined in needs.dot (see Fig. 13), validates that it is acyclic, and selects a subgraph from the triggering task list (which supports the F>, >T and F>T window syntax, as well as the task:T and task:R suffixes for skipping tests and releases). Then, it computes the list of tasks to be executed through workflow_call (those with no pending predecessors) and launches a watch.yml run with the state of the whole graph.

• watch is a Dispatchable Workflow which supervises the scheduled runs:

  • watch.py dispatches each task as soon as all its predecessors have completed, watches the running workflows, reruns failed ones up to the configured rerun attempts, and cascades cancellations to their descendants.

  • results.py runs when the watch finishes and:

    • if the watch run exceeded the maximum execution time, dispatches a new watch.yml run with the same schedule (time resurrection);

    • if the watch run was cancelled for any other reason, cascades the cancellation to the runs in progress;

    • in any case, gathers the conclusions of all scheduled runs and prints a summary of the scheduling.

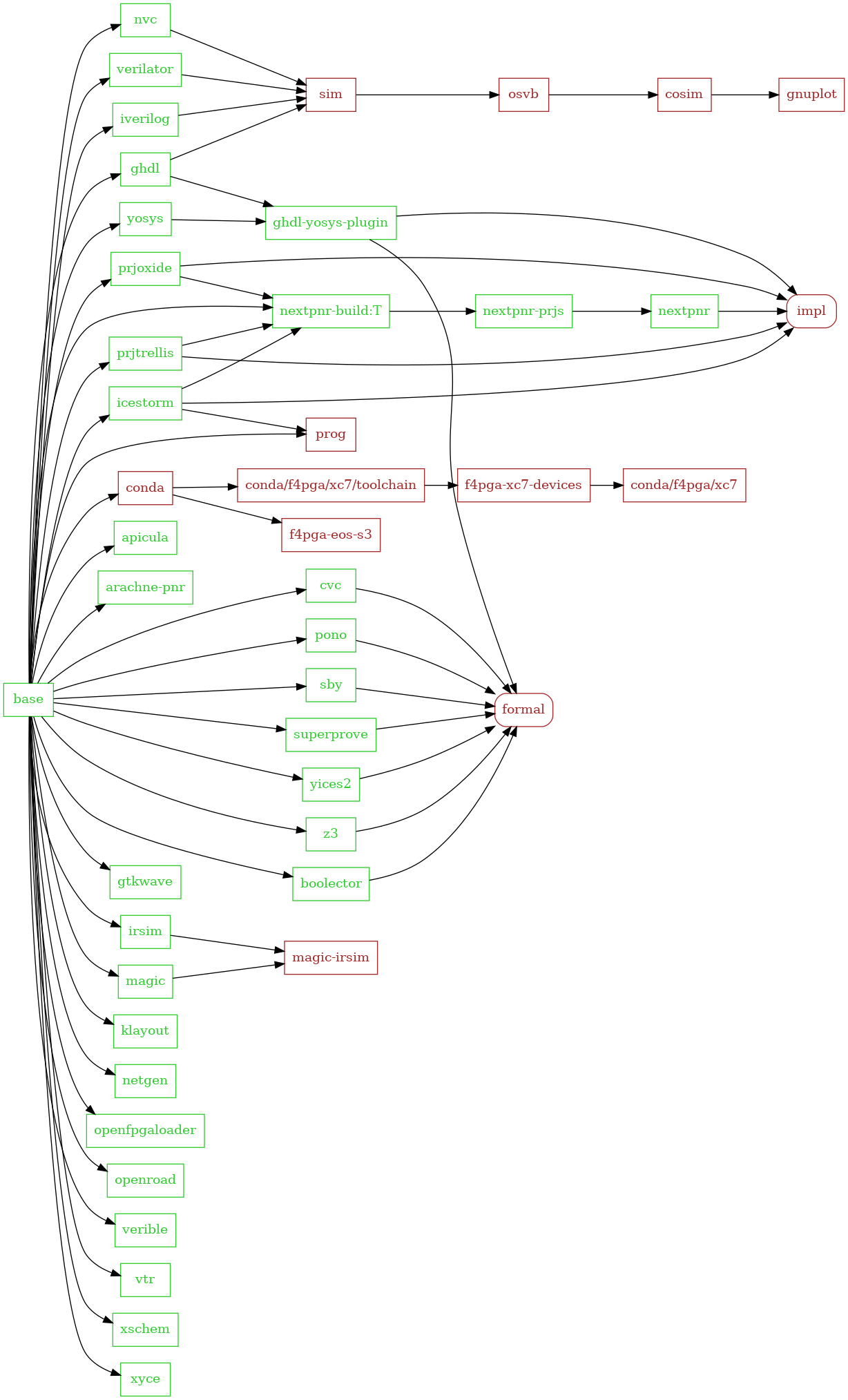

Fig. 13 Workflow scheduling

• build-test-release is both:

  • a local Composite Action build-test-release/action.yml with six steps, including setting up, pulling/building/testing, releasing and uploading the summary artifacts.

  • a local Reusable and Dispatchable Workflow workflows/build-test-release.yml with three jobs. The scheduler calls it once per initial task, the watch dispatches it for each of the remaining ones, and it can also be triggered manually.

    • The first job, named matrix, uses the Composite Action generate-matrix/action.yml, which runs pyHDLC jobs and generates the list of images to be built (see docs.github.com: Workflow syntax for GitHub Actions » jobs.<job_id>.outputs).

    • The second job, named jobs, runs the build-test-release Composite Action in parallel for each of those images.

    • The third job, named results, downloads the summary artifacts of the previous job and renders the overall report with summary.py.

Important

formal and impl are standalone Dispatchable Workflows, kept apart because the Reusable and Dispatchable Workflow cannot yet express their pull lists.
